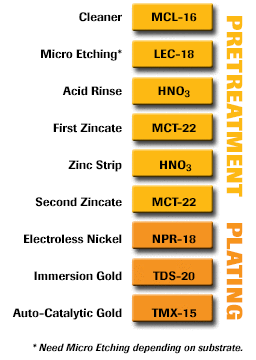

Pretreatment
EPITHAS™ MCL-16 – alkaline soak cleaner for silicon wafers is designed for the pretreatment of aluminum prior to electroless nickel plating. (Also available: MCL-067 CMOS-compatible cleaner.)
EPITHAS™ LEC-18 – micro etch for aluminum removes oxide surface film from aluminum and aluminum alloys. An exceptional pretreatment for plating electroless nickel on aluminum for silicon wafers. (Also available: EPITHAS™ LEC-19 CMOS-compatible micro etch.)
HNO3 acid rinse forms a thin oxide layer on the aluminum IC pad.
HNO3 zinc strip
Plating
EPITHAS™ PD-3 Electroless Palladium
The EPITHAS™ PD-3 process deposits palladium as a surface finish on wafers and electronic components. The palladium surface is solderable and wire bondable. High palladium concentration allows analysis at longer intervals; low operating temperatures minimize utility expense. The highly stable bath is also tolerant of impurities, including nitrate, copper and nickel.
EPITHAS™ NPR-18 – mildly acidic electroless nickel plating bath for fine line circuitry in silicon wafer plating. Stable, easy-to-use bath allows bridge-free deposit of electroless nickel. Nickel layer forms an adherent coating to the IC and functions as a diffusion barrier. Optimized for automatic solution control using Uyemura Starline NI controller. (Also available: EPITHAS™ NPR-18CM CMOS-compatible electroless nickel.)
EPITHAS™ NPR-24, is a mildly acidic electroless nickel that has been specially formulated for fine line circuitry encountered in silicon wafer plating. This bath allows the deposition of EN without bridging; easy to use and optimized for automatic solution control using the Uyemura STARLiNE DASH controller.
EPITHAS™ TDS-20 – neutral immersion gold bath for silicon wafers is designed for surface mount applications and wafer plating. TDS neutral immersion gold won’t corrode the underlying nickel surface, so it provides excellent solder joint reliability, including small solder balls. Cyanide-free.
EPITHAS™ TDS-43, is an alternative to TDS-20, a neutral, cyanide-free bath for plating the immersion gold layer of ENEPIG on aluminum or copper pads. EPITHAS™ TDS-43 is a high reliability soldering and wire bonding surface. The bath is highly stable and easy to control.
EPITHAS™ TMX-16 – electroless gold for silicon wafers is cyanide-free, with a neutral pH. Ideal for surface mount and wafer plating. Will not corrode the underlying nickel surface, thus it provides excellent solder joint reliability.
We recommend TDS-20 immersion gold as the under-layer, and EPITHAS™ NPR-18 electroless nickel with EPITHAS™ TMX-15 electroless gold.
CMOS-Compatible Process for Aluminum Metallization
EPITHAS™ CACL-067 – acid soak cleaner for pretreatment of silicon wafers, including SOI wafers, prior to the EPITHAS™ Ni/Au process.
EPITHAS™ LEC-19 – micro-etch removes naturally-occurring oxidation from aluminum and aluminum alloy surfaces. Pretreatment for electroless nickel on aluminum for silicon wafers, including SOI wafers.
EPITHAS™ MCS-30 – acid immersion zinc for silicon wafer plating; minimizes the dissolution of aluminum, assures thin, uniform zinc deposit for subsequent electroless nickel plating.
EPITHAS™ NPR-18CM – was developed for wafer plating applications with fine line circuitry. Highly stable bath; allows bridge-free deposition of electroless nickel. Low temperature operation for improved resist tolerance. 6-8% phosphorus as plated. 100-hour salt spray performance (ASTM B117). Adhesion is superior to electroplated nickel.
Read about our UBM process for copper
Read Under Bump Metallization: Some Economical Alternatives published in US Tech.
